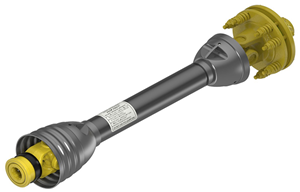

STANDARD SERIES METRIC DRIVELINE – BYPY SERIES 4 – 36 inch COMPRESSED LENGTH – HAS FRICTION CLUTCH – FOR ROTARY CUTTER AND TILLLER GENERAL APPLICATIONS
$326.00
Description
Weasler Standard PTO Drive ShaftsWeasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all-purpose use and meet the requirements of small farms and consumers.The metric product line offering of PTO drive shafts meets the power transmission needs of many applications. Design adjustability (cut-to-length) capabilities.Interchangeability to fit with most competitor models.Tri-lobe shaft profilesStandard guard construction without Easy Lock allows assembly or removal with a screwdriver.Available with Standard bearing kits requiring regular lubrication.
Tech Specs
| Bondioli-Pavesi PTO Series | 4 |
| Brand | Weasler |
| Clutch Torque Rating | 8 , 000 in*pounds |
| Compressed Overall Length | 36.00 Inches |
| Cross & Bearing Cap Diameter | 1.06 Inch / 27.0mm |
| Cross & Bearing Overall Length | 2.94 Inch / 74.60mm |
| Driveshaft Application | Rotary Cutter/Tiller |
| Driveshaft Implement End | 1-3/8" 6 Spline Friction Clutch |
| Implement Yoke Part Number | 563-8406-03 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | Complete Drive Shaft |
| PTO Tubing Shape | Trilobe Tube |
| Tractor Yoke Lock Type | Safety Slide Lock |
| Tractor Yoke Part Number | 101-8406 |
| Tractor Yoke Size | 1-3/8" 6 Spline |
| Weasler Brand Series | Standard |
Application
| Make | Type | Model |
| Behlin | Rotary Tiller | 80118030ORG , 80118040YEL , 80118050YEL , 80118060YEL |
| Bush Hog | Rotary Tiller | RT60G , RT60GR , RT72G , RT72GR , RT84G , RT84GR , RTM , RTN , RTS |
| Howse | Rotary Tiller | RTC48 , RTC62 , RTC70 , RTR85 , UH84 , UL48 , UM60 , UM72 |
| John Deere | Rotary Tiller | TG-48 , TG-72Y , TH-60Y |
| King Kutter | Rotary Cutter | L-60-40-SC , L-60-60-SC |
| King Kutter | Rotary Tiller | RTG-60 , RTG-72 , TG-48-XB , TG-54-XBX , TG-60 , TG-72 , TG-84 , TG-G-48 , TG-G-60 , TG-G-72 , TG-G-84 |
| Tarter | Rotary Tiller | RT205BL , RT206BL , RT207BL , RTC48 , UL48 |
Additional information
| Weight | 36 lbs |
|---|
