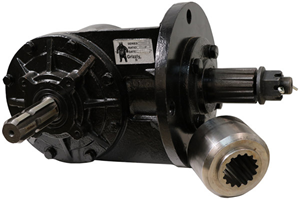

75 HP 6-SPLINE INPUT GEAR BOX FOR ROTARY CUTTERS
$670.80
Description
This heavy-duty gear box is designed to be an easy and quick replacement for multiple makes and models of rotary cutters. The cast iron construction, heat treated bevel gears, and painted exterior make replacement a breeze.
Tech Specs
| Gear Ratio | 1 to 1.46 |
| Gear Type | Bevel Gear |
| Input Shaft | 1-3/8 Inch 6-Spline x 3-7/8 Inch Long |
| Max RPM | 540 RPM |
| Mounting Hole Diameter | 3/4 Inch |
| Mounting Hole Layout | Four 3/4" Holes on 8 Inch Circle |
| Output Shaft | 2 Inch 15-Spline x 7-3/8 Inch Long |
| Rated Horsepower | 75 HP |
| Uses Blade Hub | 89755 |
| Uses Castle Nut | 102241 |
Interchanges
- 49334
- 023-49334
Additional information
| Weight | 83 lbs |
|---|
