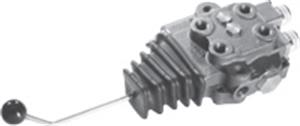

2 SPOOL HYDRAULIC VALVE – CLOSED CENTER – WITH JOYSTICK
$1,065.32
Description
2 Spool Closed Center Hydraulic Control Valve with Joystick Handle; 4-way, 3 position; Spring Centering; With End Ports; No relief valve; For operating double-acting cylinders or a reversible hydraulic motor.
Tech Specs
| Brand | Cross |
| Handle | Joystick |
| Hydraulic Systems | Closed |
| Max Flow | 30 GPM |
| Number of Valve Spools | 2 |
| Outlet Location | End Outlet |
| Port Size | Inlet And Outlet 3/4 Inch Nptf , Working Ports 1/2 Inch Nptf |
| Power Beyond Port | Closed Center Plug |
| Relief Port | No Relief Port |
| Spool 1 Action | 3 Position Spring Centered |
| Spool 1 Specification | 4 Way , 3 Position |
| Spool 2 Action | 3 Position Spring Centered |
| Spool 2 Specification | 4 Way , 3 Position |
Additional information
| Weight | 24 lbs |
|---|
