1/2 inch NPT S70 SERIES SAFEWAY COUPLER BODY – CONNECT UNDER PRESSURE

Description

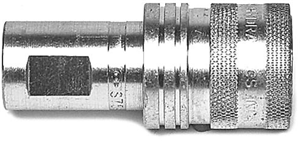

S70 Series  – Connect Under Pressure

Female Coupler Body

SafeWay’s S70 Series offers unique internal valving, combined with SafeWay’s two-way sleeve feature, allowing one-hand connection under full system pressure. The body (coupling) half can be mated to either a ball valve or poppet valve ISO male tip (nipple). The S70 Series is used primarily with agricultural equipment. It is original equipment on full size tractors and front-end loaders. Use when connection and disconnection-under-pressure, without the use of tools, is desirable.

1/2″ body size couplers and male tips meet ISO 5675 interchangeability and performance requirements.
After connection, the hydraulic circuit automatically opens when the hydraulic system is operated.
Available in 1/2″ body size, in a variety of thread sizes and styles.
All poppet valve models are 100% leak tested before leaving the factory.
Easy one-hand connection to a clamp or bulkhead mounted coupler while male tip and female body half are both—or either—under pressure.
S42-4 Heavy-duty double break-away clamp available.
Critical parts are hardened for long service life.
Two-way sleeve design allows one-hand connection and break-away when clamp or bulkhead mounted.
Interchangeable half-for-half with the Parker/Pioneer 8200 Series.
May be used with either an open center or closed center hydraulic system that has a control valve.

Tech Specs

Interchanges

• S75-4
