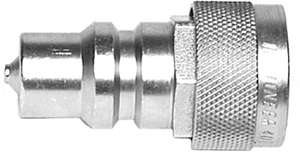

QUICK COUPLER ADAPTER – ISO MALE TIP TO J I CASE OLD STYLE BODY

Description

Quick Coupling Adapters

Connect ISO Standard Male Tip to JI Case Old Style Coupler Body

How To Connect Using An Adapter:

Step 1 Relieve trapped pressure in the implement line.

Step 2 Connect male tip on the implement line into the adapter.

Step 3 Connect the Adapter into the female body.

To Disconnect: Reverse the above procedure: first disengage adapter from female body, then male tip from Adapter

Tech Specs

Interchanges

• S25-4-6
